Rack Gear（GT）

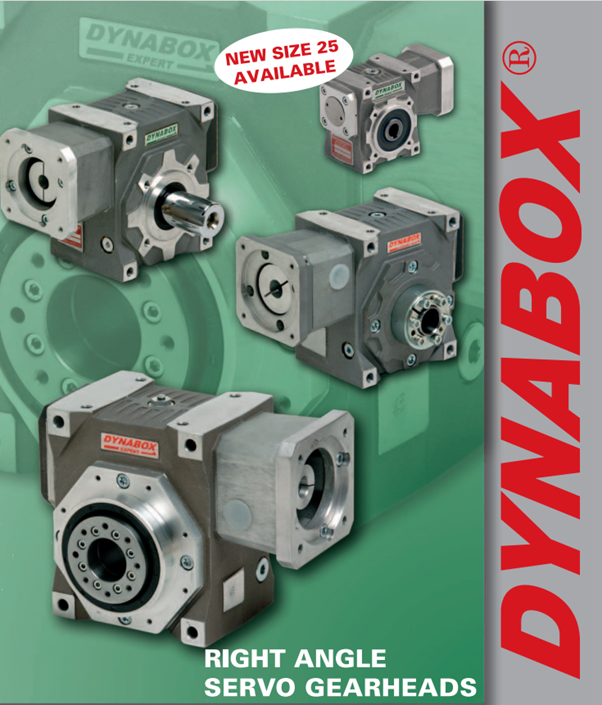

DYNABOX (FR)

Precision Worm gearbox
Backlash: BASIC-10Arcmin, Medium-3~5Arcmin, Expert-1Arcmin
Max.Input Speed 6000rpm
Max.Output Torque 약13000Nm
Max.Fr 78000N, Max. Fa 71000N
Ratio 3.125 ~ 90:1
5kinds of Output Options

Planetary Gearbox (FR)

Precision Planetary Geabox for Servo Motors
Backlash under 12 ~ 1arcmin
Max.Input Speed 6000rpm
Max.Output Torque 약10100Nm
Max.Fr 75000N, Max. Fa 35000N
Ratio 3 ~ 220:1
4Kinds of (MRP, MNT, BDB, MRA)

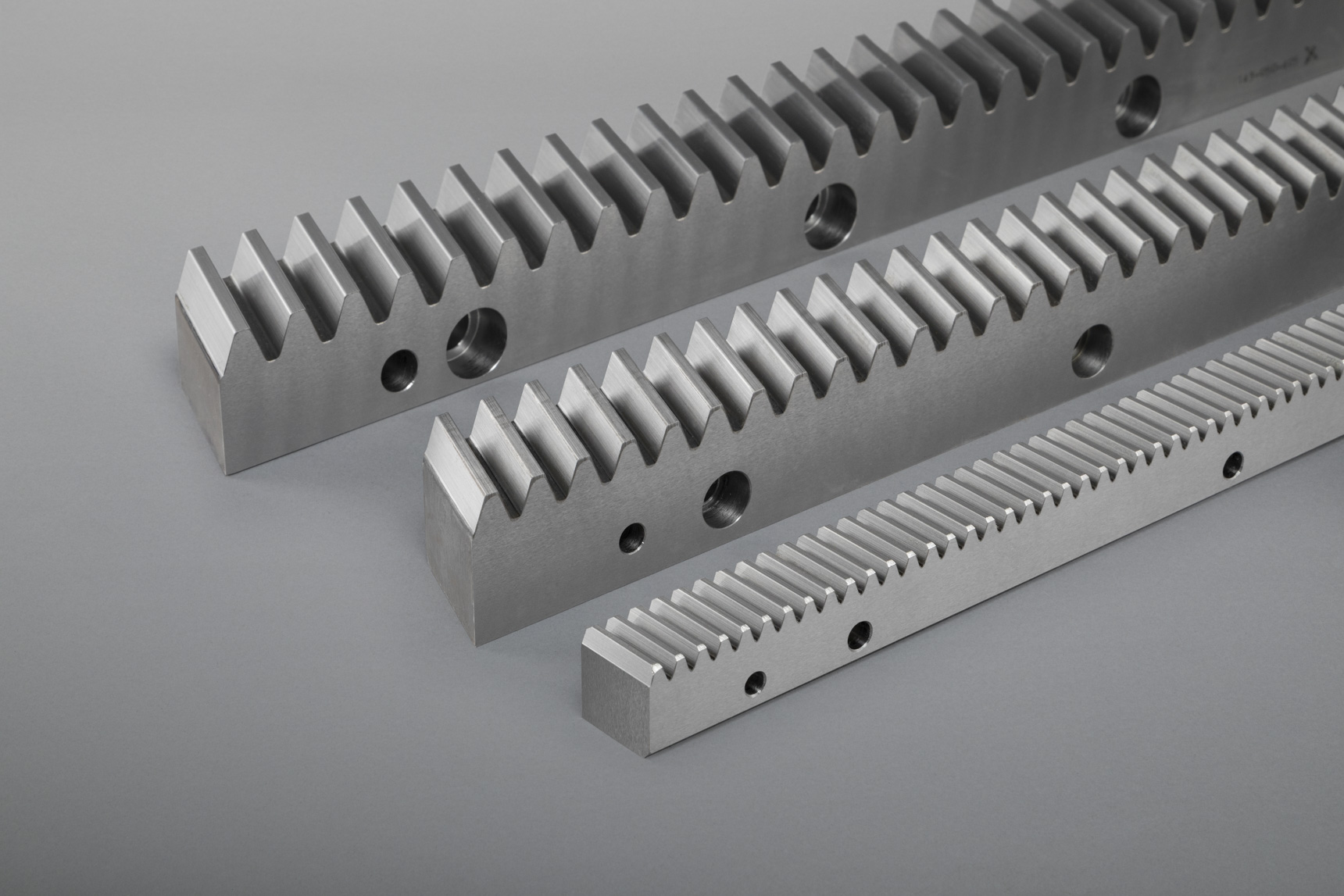

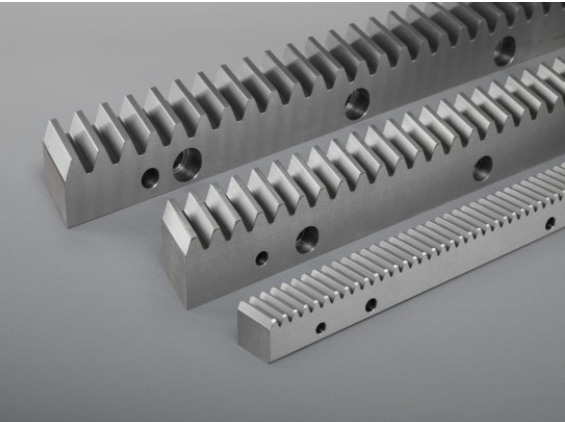

Rack Gear（FR）

Precision DIN4 ~ DIN8
Customized
Straight & Helical Teeth

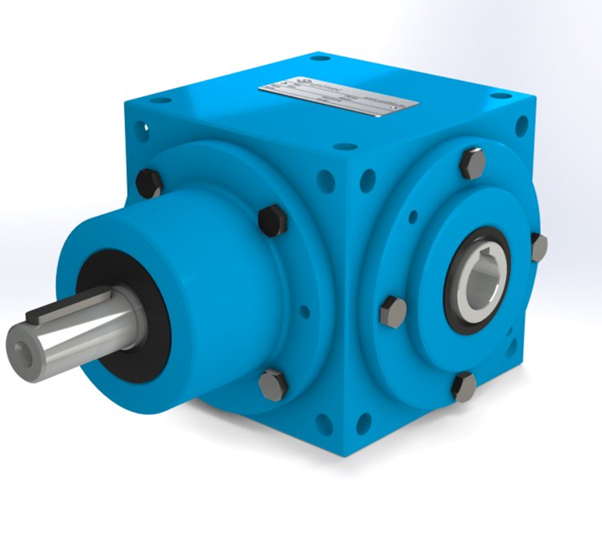

Bevel Gear (IT)

For Servo Motors & For AC Induction Motors
(all kinds of motor adaptors are available)
1.27kinds of types, 9kinds of size, Ratio upto 12:1
2.Backlash: Standard under 10~12arcmin,
Customized under 5~7arcmin
3.Efficiency: Over 97%

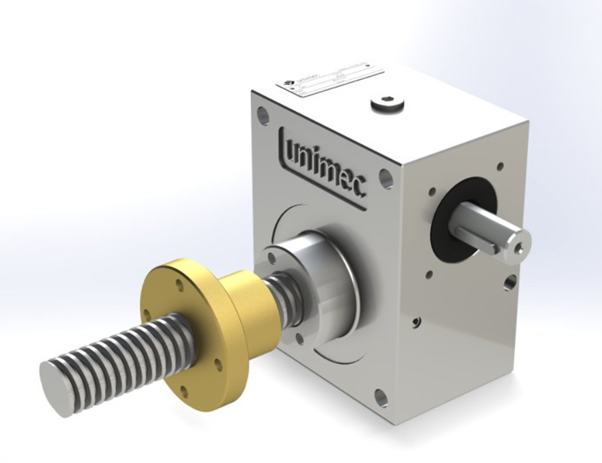

Screw Jack (IT)

Servo Motors and AC Induction Motors can all be used
(All motors adaptors are available)
Spindle Type(TP) and Nut Type( TPR)
14kinds of type
Ratio 5:1 ~ 30:1

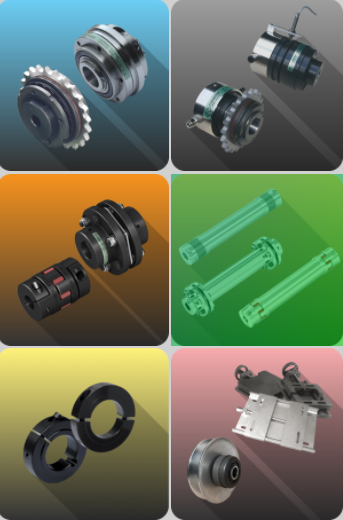

Coupling and Others (IT)

-Rigid couplings (backlash free): For connections when high precision and high transmission torques are required;
-Elastomeric couplings: For connection between misaligned shafts with the need to absorb vibrations.

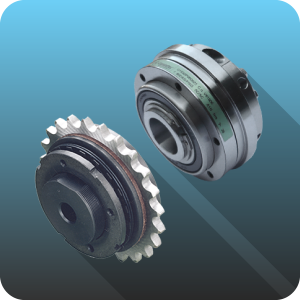

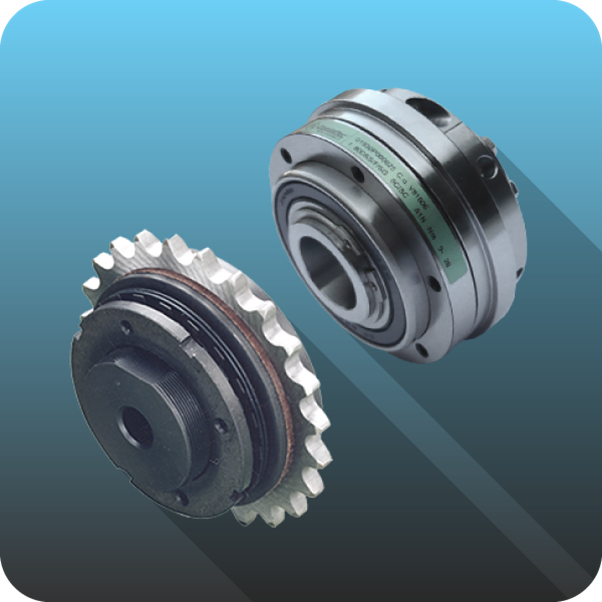

Torque Limiter (IT)

-Long product life with continuous reliability;
-Optimum protection against environmental conditions;
-Simple mounting for in-line and parallel transmission;
-Easy setting and adjustment;
-Highly accurate and fast machine protection;
-Special designs to suit specific applications possible;
-Competitive pricing without sacrificing quality;
-“Made in Italy” with certified quality.

PLC&mothion control board

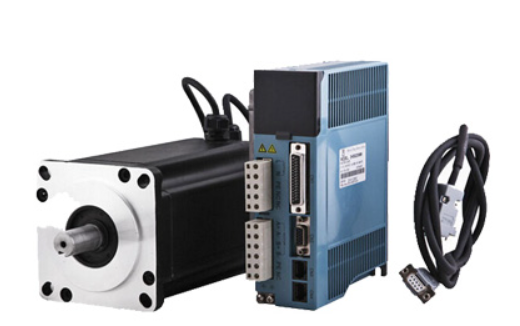

DC Servo Motor

Motor Capacity 200W ~ 1500W
Customized ones are available
Raged torque 0.64 ~ 4.78Nm
Rated speed 3000rpm
Encoder Resolution 1024p, 2500p
Communication support:
RS485(MODBUS RTU), CANopen,
EtherCAT(COE, CiA402 DRIVE PROFILE)

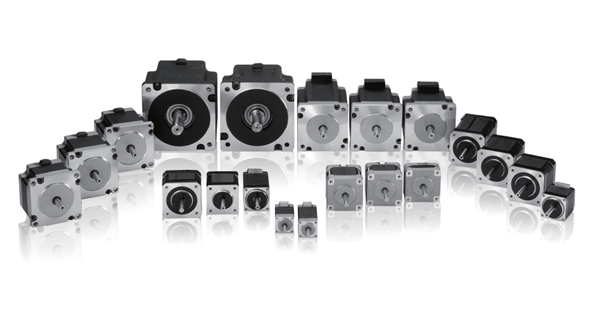

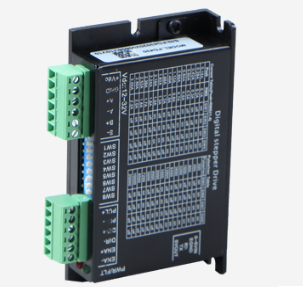

DC Stepper Motor

Step Angle 2Phase 1.8°, 09°
Size 14mm ~ 1100mm
Bipolar Type and Unipolar Type
Holding Torque 0.0063Nm ~ 28Nm
Ambient Temperature -20°C ~ +50°C

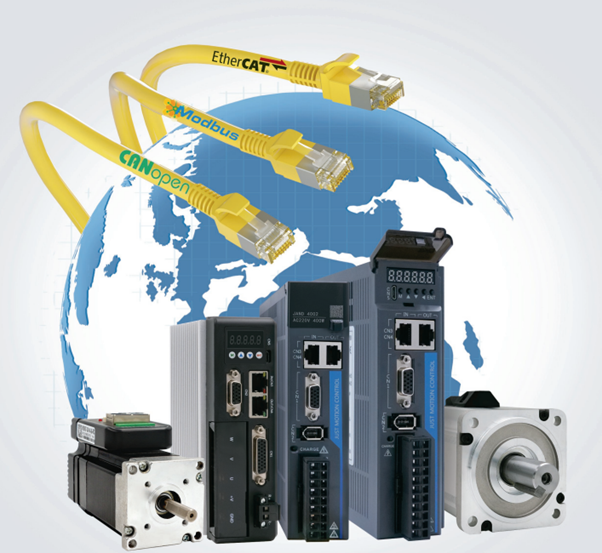

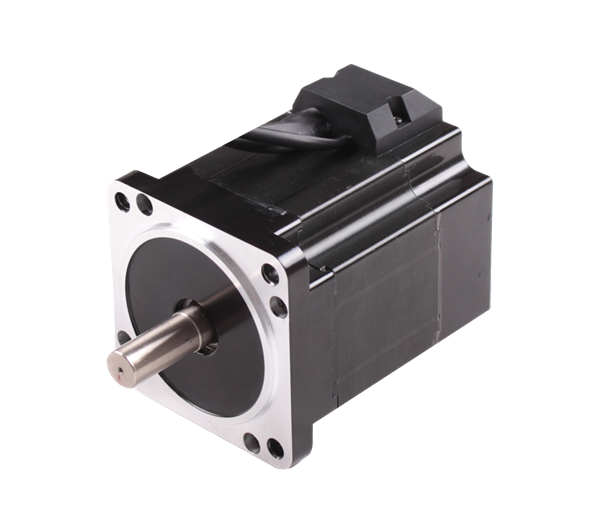

DC Stepper Servo Motor

OPEN LOOP & CLOSED LOOP
OPEN LOOP 2phase size 28 ~ 86
CLOSED LOOP 2phase size 42~86, 3phase 86,110,130
Communications supporting:
RS485(MODBUS RTU), CANopen, EtherCAT(COE, CiA402 DRIVE PROFILE)

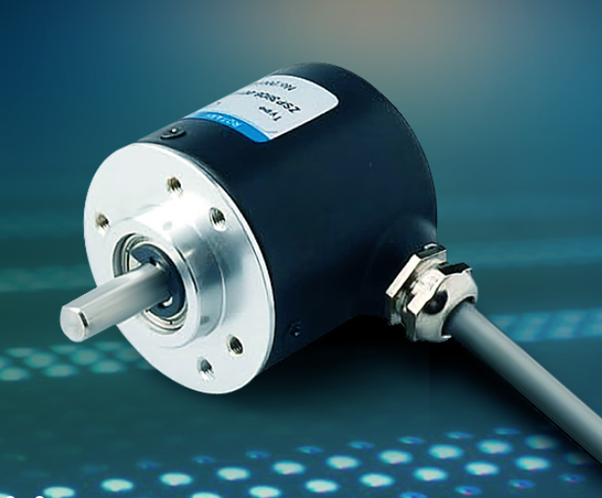

Encoder

5kinds of types
A,B,Z phase, Line Driver
Ambient Temperature -40~+80도
Input Voltage DC 5V+/-5%
Resolution 50~3600p

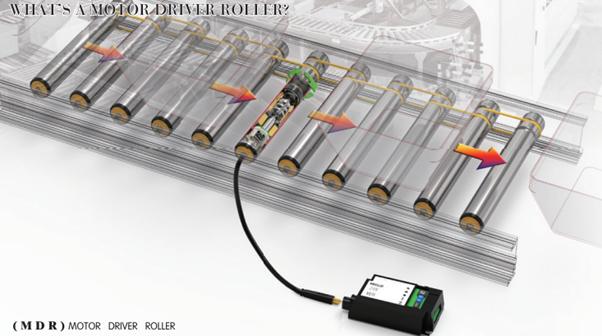

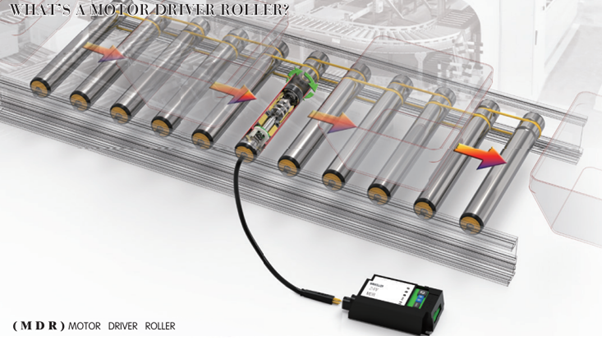

DC Power Moller

DC Power Moller

Dia 38 ~ 216mm
Customized Developments Expert
Input voltage DC24V, DC48V(DC72V development possible)
Speed/Length of moller: Customized
Built-in gearbox using(High speed moller without gearbox available)
Taper type roller is available for curve course
