Joints, Wheels, Encoder

Encoder fittings

Supports
Wide choice of encoder joints and measuring wheels

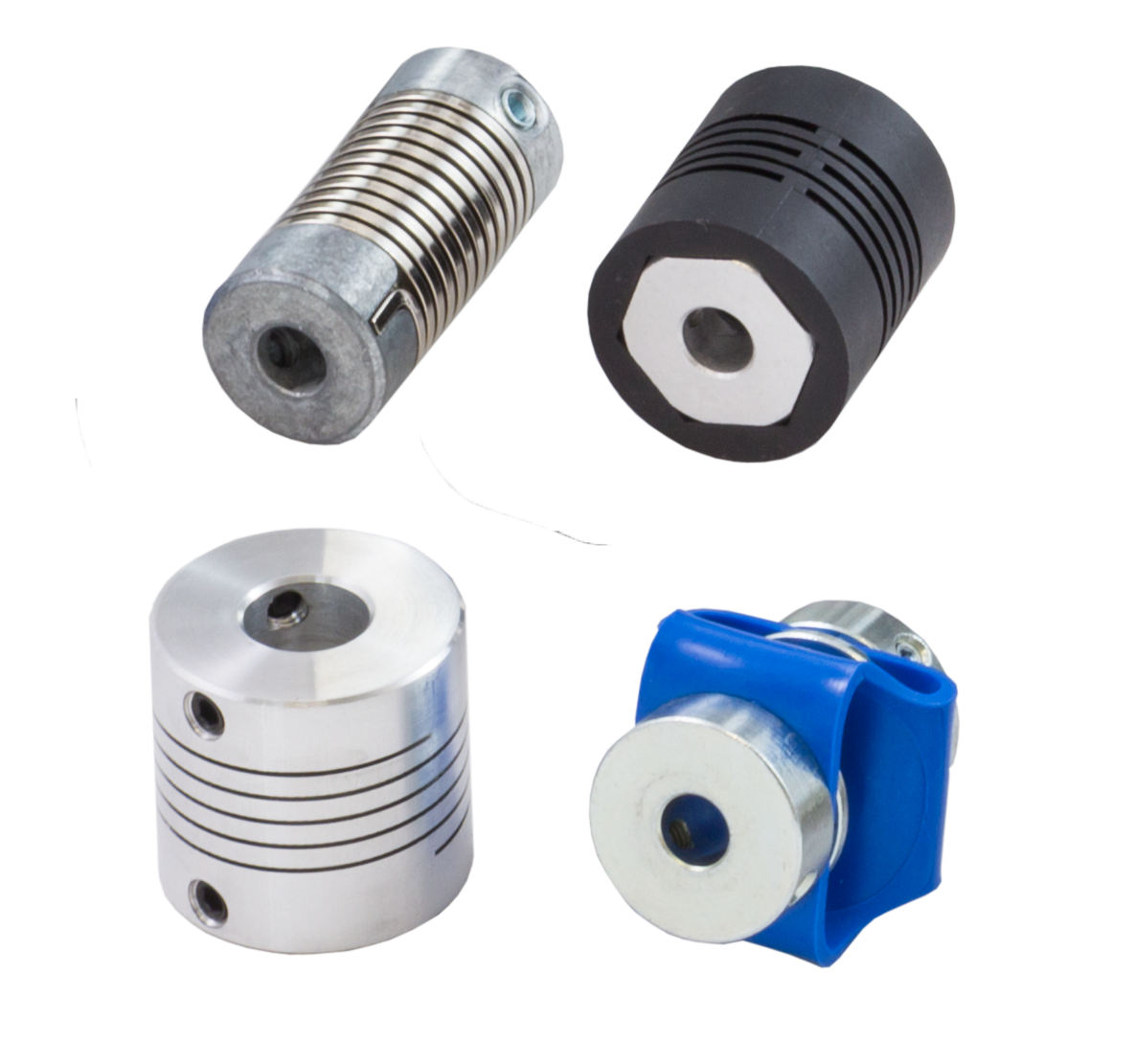

Encoder couplings




The flexible joint mounted on the encoder shaft grants a very good coupling, without parallel and angular mis-alignment, and avoids overloads, which can damage the bushings life.

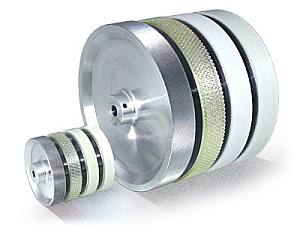

Measuring wheels for encoders



Elap measuring wheels are fit for the use in touch with  metal, steel profiles, varnished surfaces, plastic materials, paper, cardboard, wood, fabrics and leather; they offer an excellent resistance to oil, fuels, ozone and environmental agents.

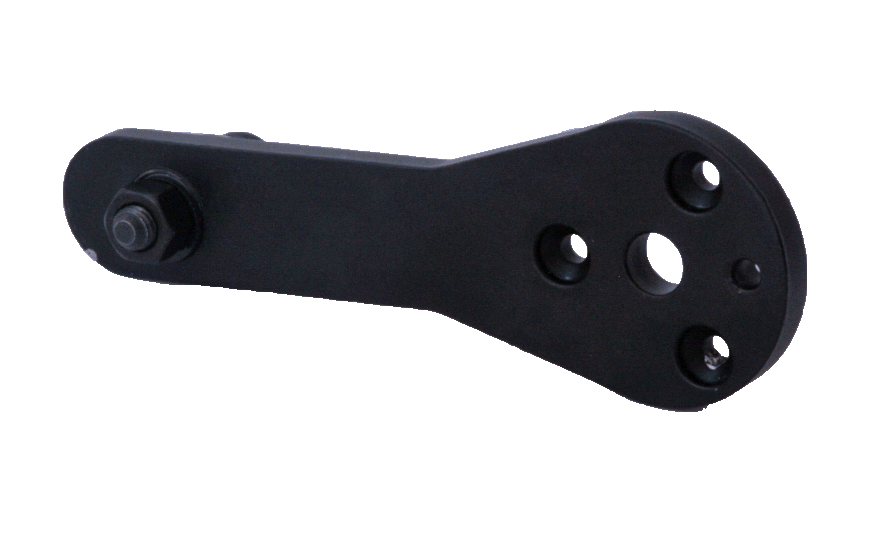

B100 Supporting arm for encoder

Joint WA/BSS






Joint FK






Joint SK






Paguflex Joint PF

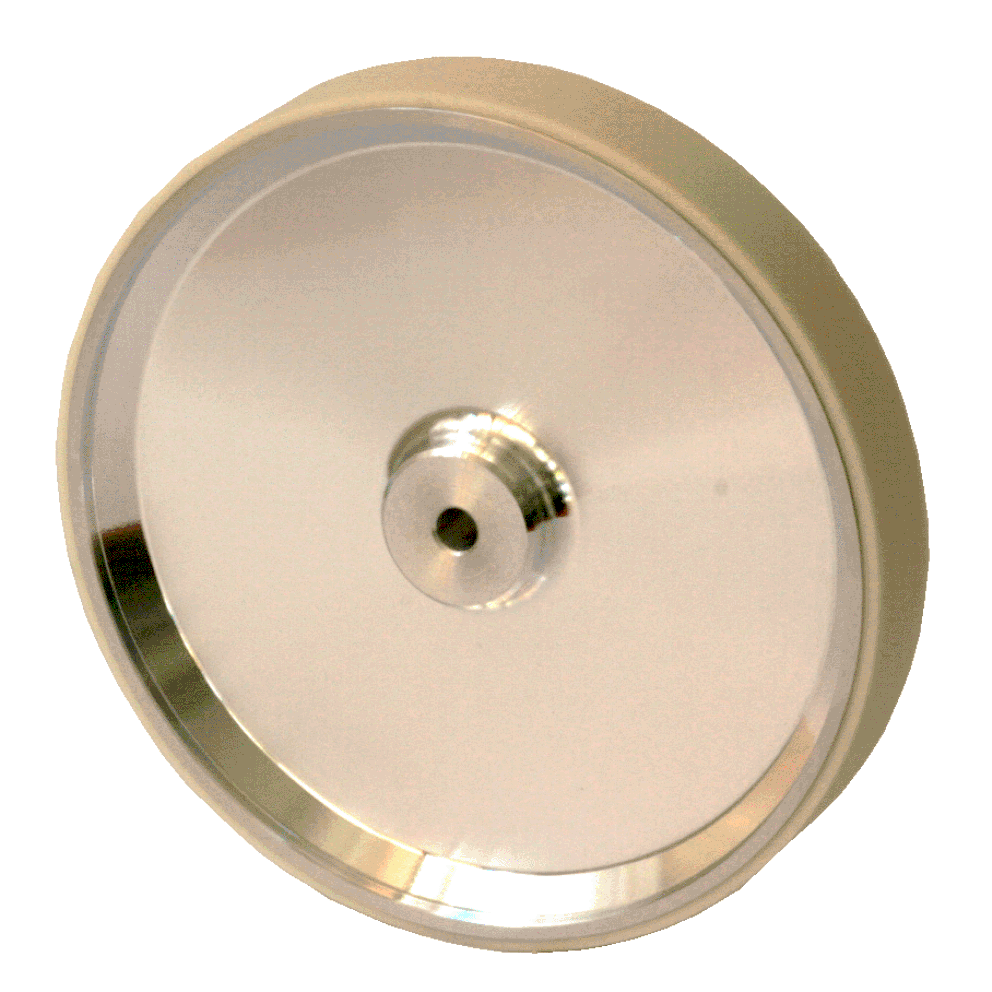

Encoder wheel RUOTA552





Development 500 mm, smooth rubber surface



8 or 10 mm Ø hole – 159.23 Ø mm code RUOTA552

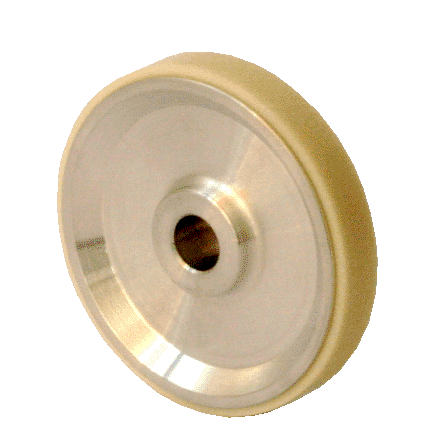

Encoder wheel RUOTA251



Development 200 mm, smooth rubber surface


8 or 10 mm Ø hole – 63.69 mm code RUOTA251

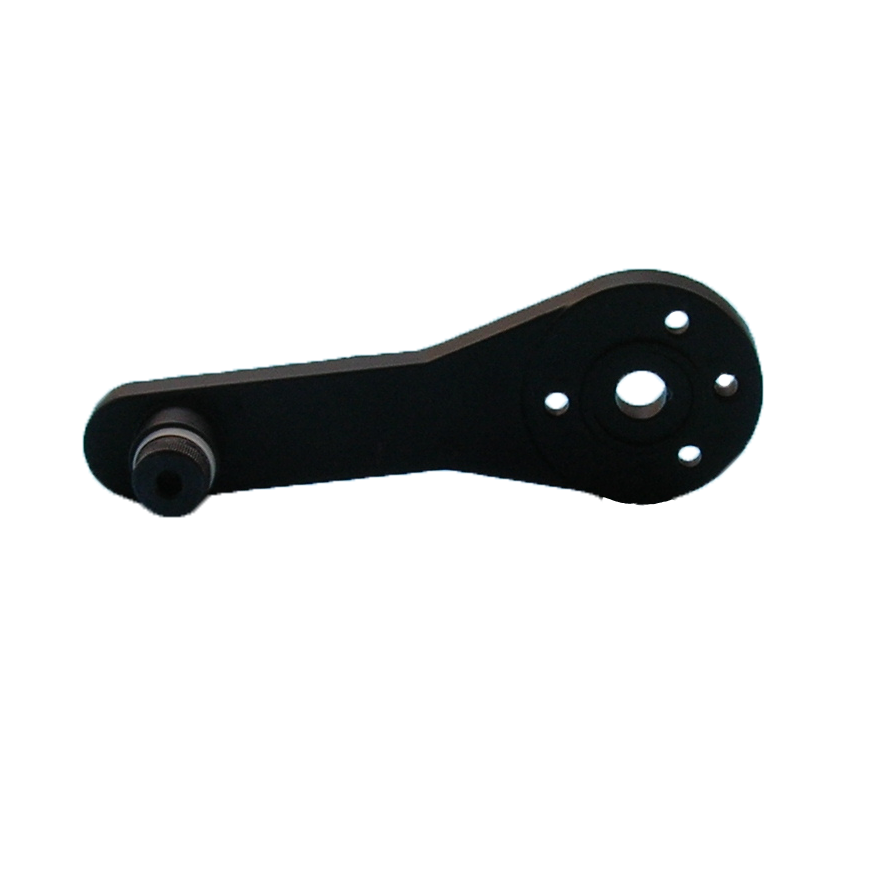

B100 Supporting arm


The following products are not available.
RM22 Encoder
